LED DOWN LIGHT BIZZA
Description

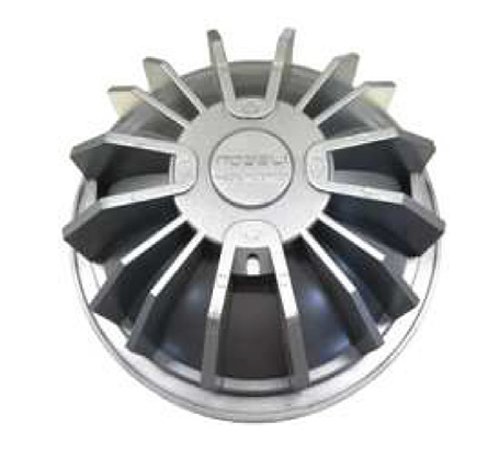

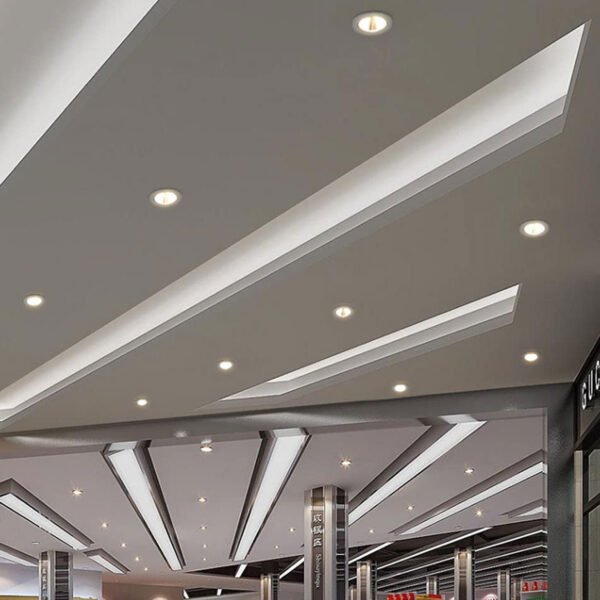

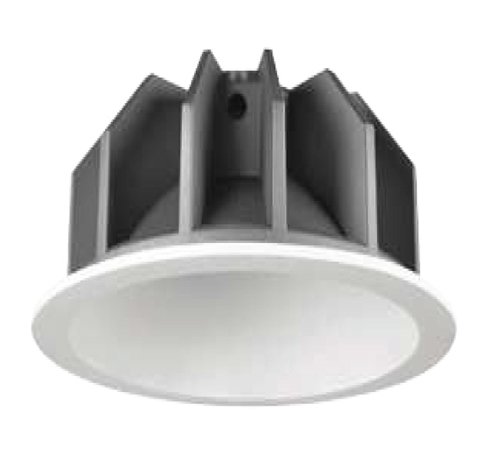

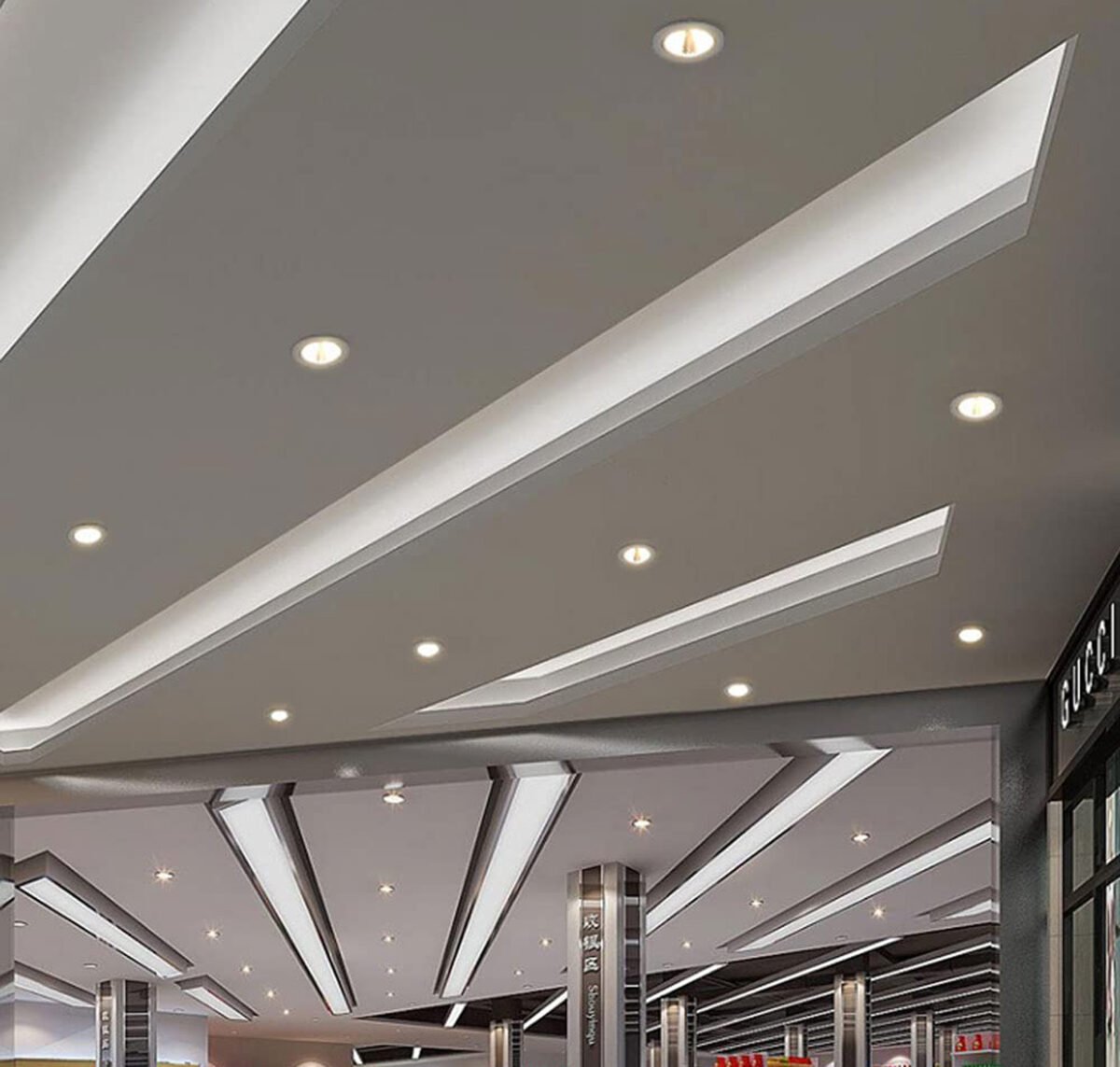

High-performance COB downlight with an innovative thermal design, delivering exceptional luminous efficacy of up to 156 lm/W. It features a wide 120° beam angle and excellent color rendering (CRI >90), making it ideal for large open areas, shopping malls, and hospitality environments such as hotels.
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-DLT-150-12W-XXK-COB-TD-XX-IP20 | W155 H68 Ø150 | 12W | 1702 |
| NSL-DLT-150-12W-XXK-COB-NS-IP20 | |||
| NSL-DLT-150-17W-XXK-COB-TD-XX-IP20 | W155 H68 Ø150 | 17W | 2414 |
| NSL-DLT-150-17W-XXK-COB-NS-IP20 | |||
| NSL-DLT-150-24W-XXK-COB-TD-XX-IP20 | W165 H68 Ø165 | 24W | 3408 |
| NSL-DLT-150-24W-XXK-COB-NS-IP20 | |||
| NSL-DLT-200-30W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 30W | 4260 |
| NSL-DLT-200-30W-XXK-COB-NS-IP20 | W230 H83 Ø200 | 30W | 4970 |
| NSL-DLT-200-35W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 35W | 4970 |
| NSL-DLT-200-35W-XXK-COB-NS-IP20 | |||
| NSL-DLT-200-40W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 40W | 5680 |
| NSL-DLT-200-40W-XXK-COB-NS-IP20 |
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-DLT-150-12W-XXK-COB-TD-XX-IP20 | W155 H68 Ø150 | 12W | 1702 |
| NSL-DLT-150-12W-XXK-COB-NS-IP20 | |||
| NSL-DLT-150-17W-XXK-COB-TD-XX-IP20 | W155 H68 Ø150 | 17W | 2414 |
| NSL-DLT-150-17W-XXK-COB-NS-IP20 | |||
| NSL-DLT-150-24W-XXK-COB-TD-XX-IP20 | W165 H68 Ø165 | 24W | 3408 |
| NSL-DLT-150-24W-XXK-COB-NS-IP20 | |||
| NSL-DLT-200-30W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 30W | 4260 |
| NSL-DLT-200-30W-XXK-COB-NS-IP20 | W230 H83 Ø200 | 30W | 4970 |
| NSL-DLT-200-35W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 35W | 4970 |
| NSL-DLT-200-35W-XXK-COB-NS-IP20 | |||
| NSL-DLT-200-40W-XXK-COB-TD-XX-IP20 | W230 H83 Ø200 | 40W | 5680 |
| NSL-DLT-200-40W-XXK-COB-NS-IP20 |
