LED LINEAR SM
Description

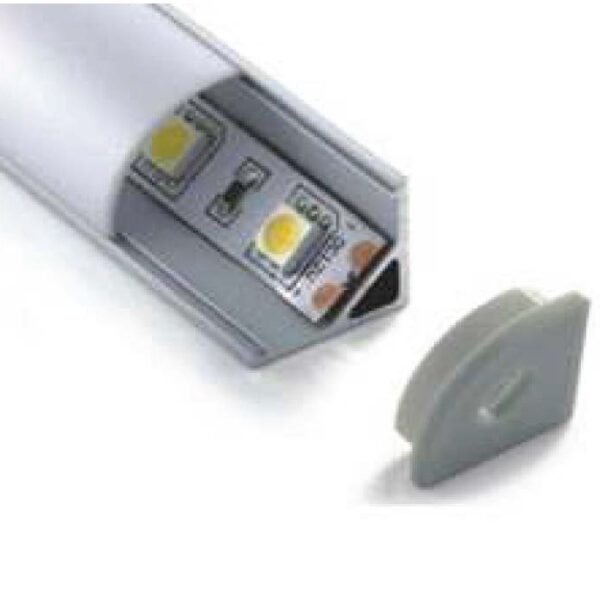

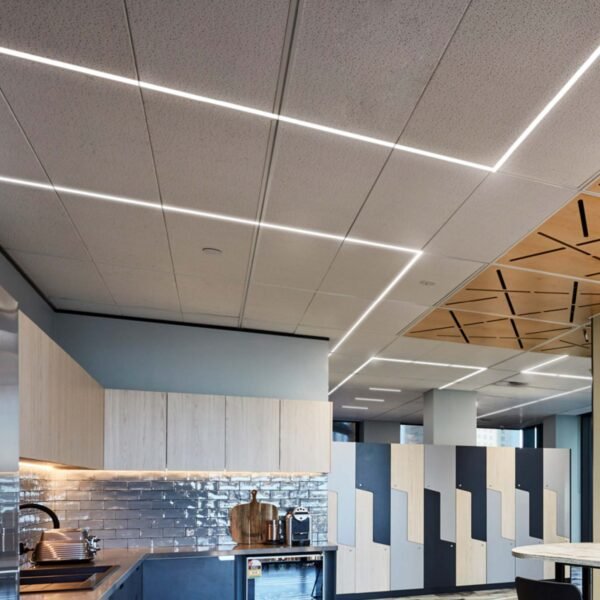

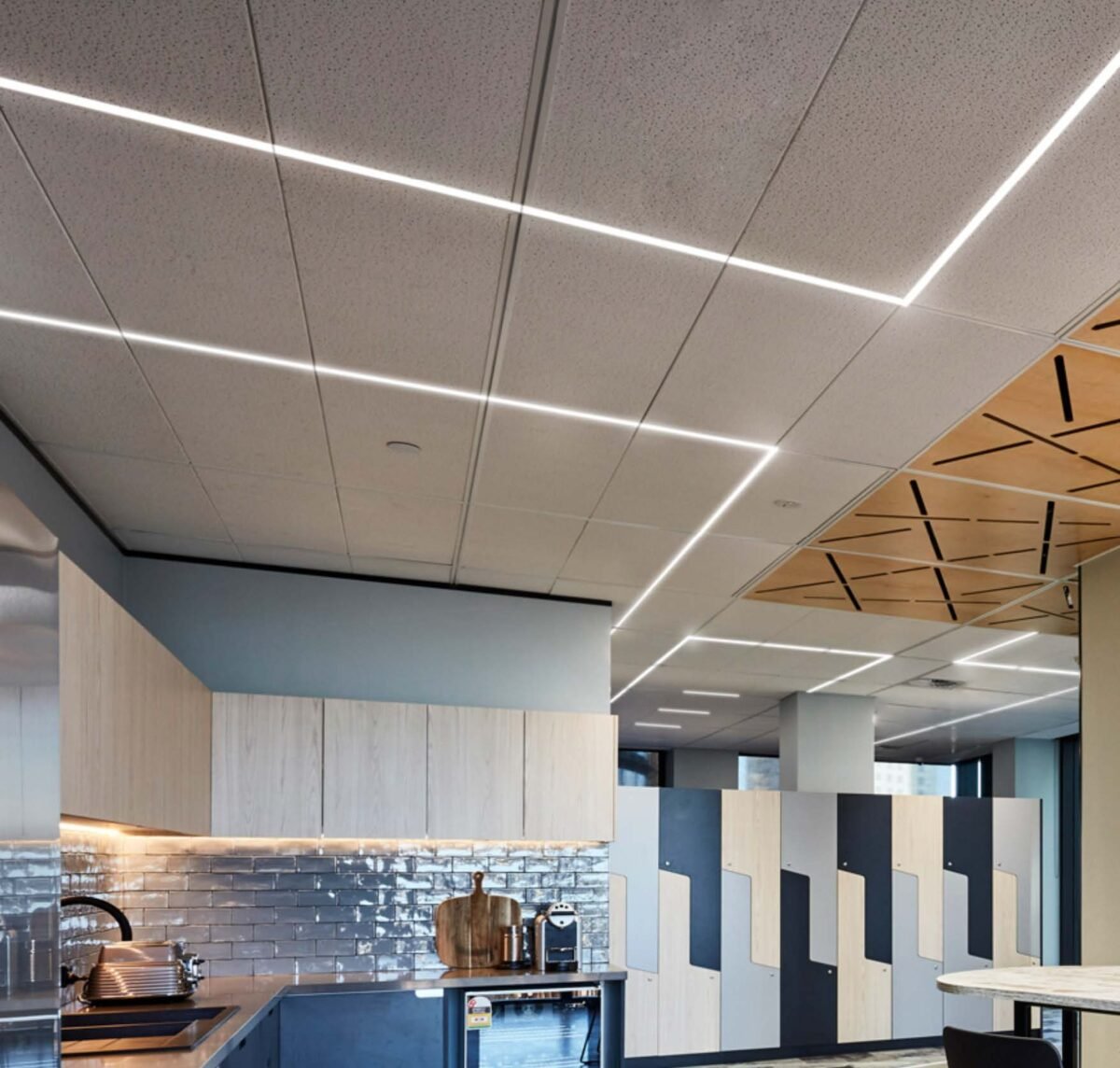

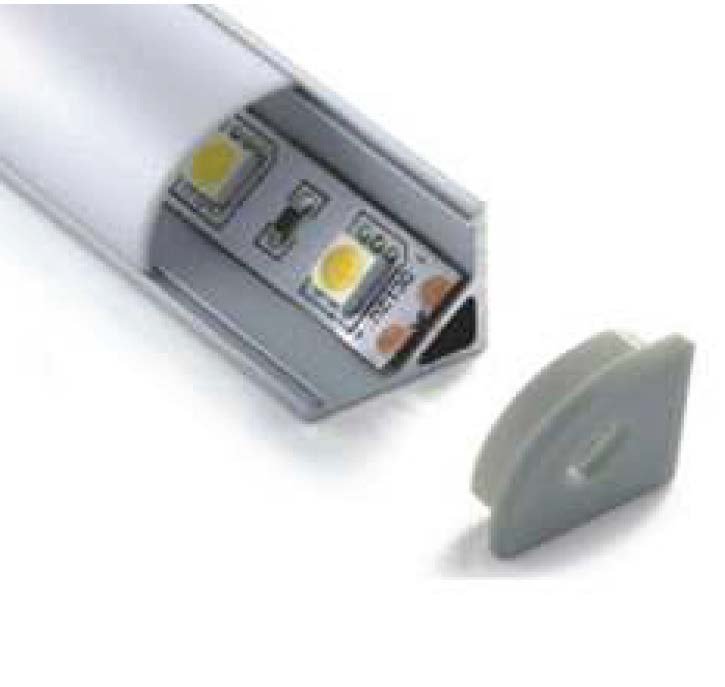

Surface mounted LED linear fixture with a precise 90° beam angle, specifically designed for controlled indoor lighting applications such as offices and restaurants. Powered by high-efficiency Osram or Bridgelux LED chips, the unit delivers up to 130 lm/W. Constructed with aluminum housing and rated IP20/IP40 for indoor use.
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-NS-IP20 | W10 H13 | 10 | 1100 |
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-NS-IP40 | |||
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-TD-XX-IP40 | |||
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-TD-XX-IP20 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-NS-IP20 | W10 H13 | 15 | 1650 |
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-NS-IP40 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-TD-XX-IP40 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-TD-XX-IP20 |
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-NS-IP20 | W10 H13 | 10 | 1100 |
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-NS-IP40 | |||
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-TD-XX-IP40 | |||
| NSL-LLS-10x13x1000-CV24-10W/M-XXK-SMD-TD-XX-IP20 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-NS-IP20 | W10 H13 | 15 | 1650 |
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-NS-IP40 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-TD-XX-IP40 | |||
| NSL-LLS-10x13x1000-CV24-15W/M-XXK-SMD-TD-XX-IP20 |
