LED DOWN LIGHT CRX
Description

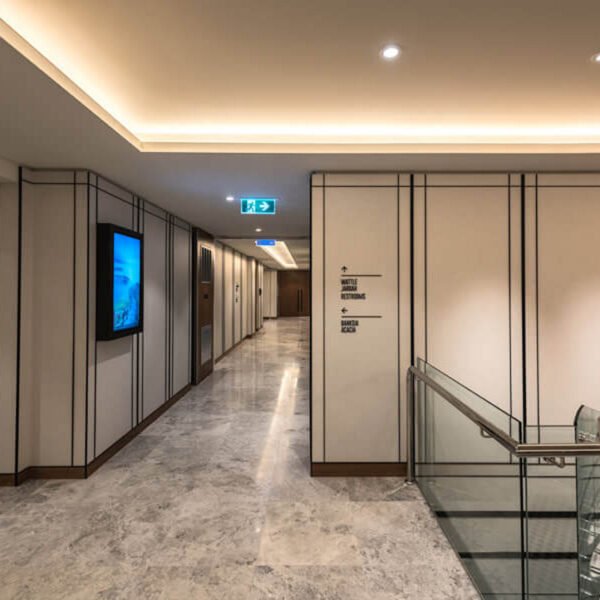

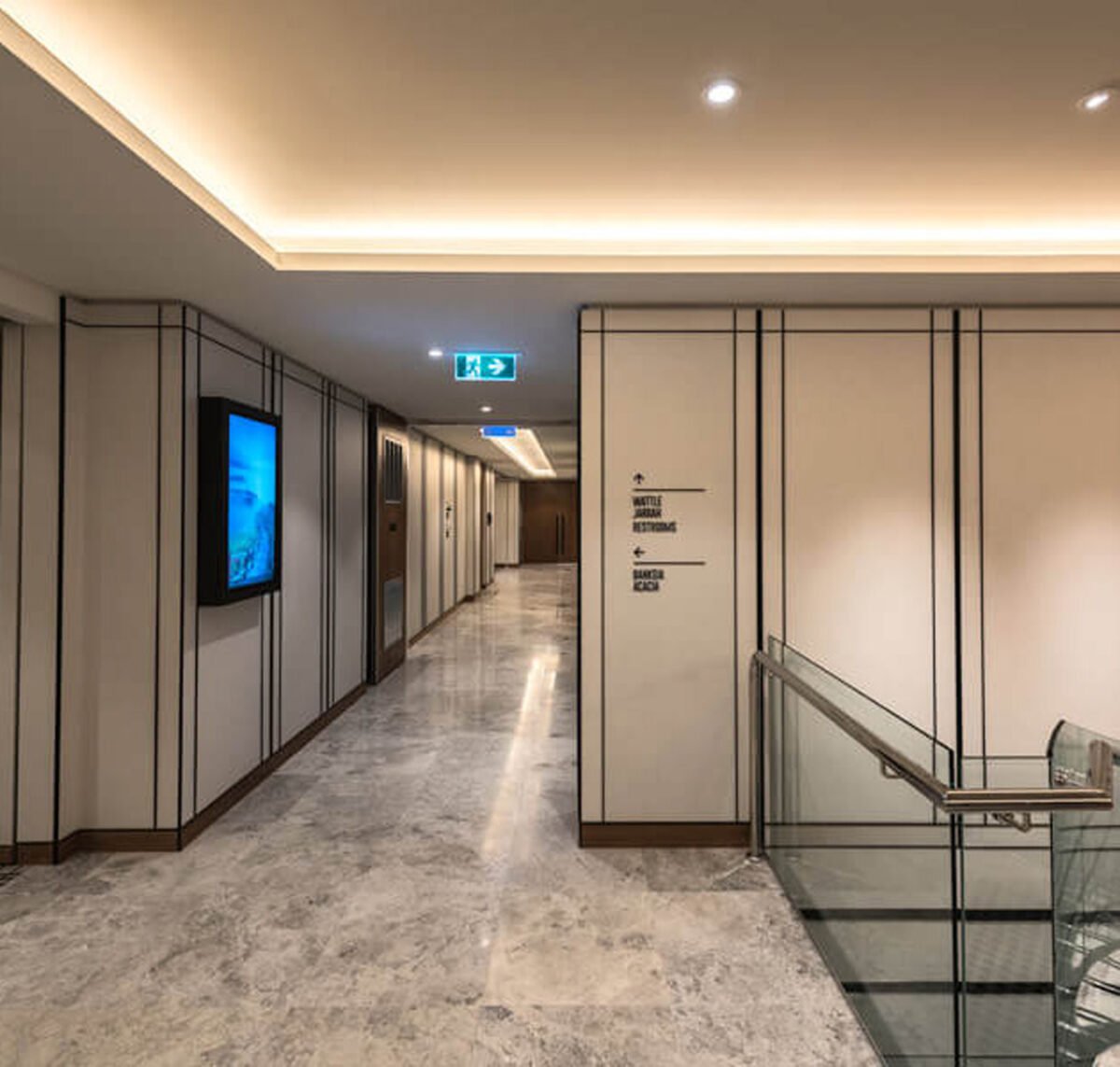

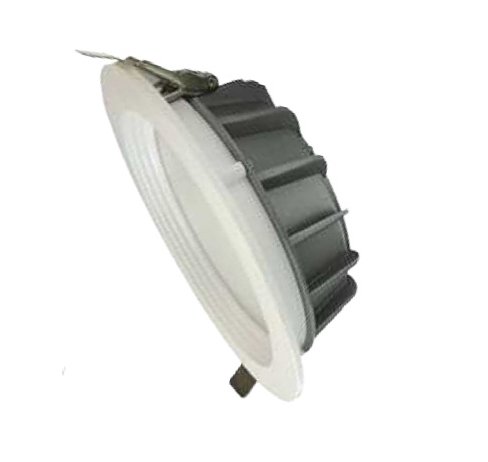

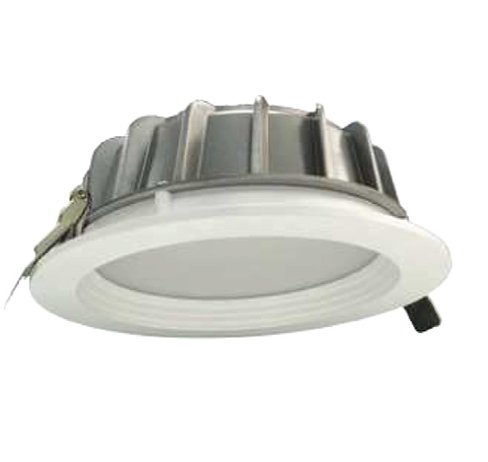

Indoor recessed downlight with a 120° beam angle and luminous efficacy of up to 130 lm/W. Equipped with Osram or Bridgelux LED chips and housed in a durable aluminum body with IP20/IP40 protection, it delivers stable performance. Ideal for use in hotels, lobbies, and formal interior spaces.
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-CRX26-3-N150-20W-XXK-SMD-NS-IP20 | W42 H169 Ø150 | 20W | 2400 |
| NSL-CRX26-3-N150-20W-XXK-SMD-TD-XX-IP20 | |||
| NSL-CRX26-3-N150-20W-XXK-SMD-NS-IP40 | |||
| NSL-CRX26-3-N150-20W-XXK-SMD-TD-XX-IP40 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-NS-IP20 | W42 H169 Ø150 | 20W | 2400 |
| NSL-CRX26-5-N150-20W-XXK-SMD-TD-XX-IP20 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-NS-IP40 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-TD-XX-IP40 |
| Order Code | Dimensions (mm) | Power (Watt) | Lumen |
|---|---|---|---|
| NSL-CRX26-3-N150-20W-XXK-SMD-NS-IP20 | W42 H169 Ø150 | 20W | 2400 |
| NSL-CRX26-3-N150-20W-XXK-SMD-TD-XX-IP20 | |||
| NSL-CRX26-3-N150-20W-XXK-SMD-NS-IP40 | |||
| NSL-CRX26-3-N150-20W-XXK-SMD-TD-XX-IP40 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-NS-IP20 | W42 H169 Ø150 | 20W | 2400 |
| NSL-CRX26-5-N150-20W-XXK-SMD-TD-XX-IP20 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-NS-IP40 | |||
| NSL-CRX26-5-N150-20W-XXK-SMD-TD-XX-IP40 |
